7.2 Insul-Rib Panel

PRODUCT DESCRIPTION:

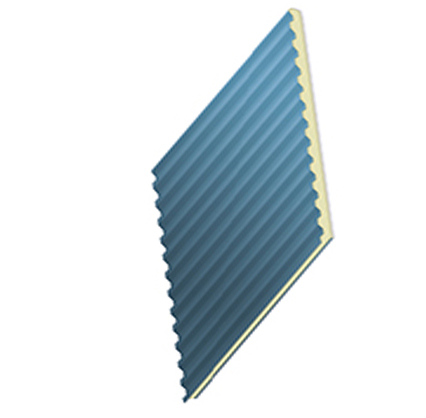

The CF 7.2 Insul-Rib insulated metal panel combines a traditional 7.2 rib panel with a premier polyurethane insulated core. With a bold, ribbed pattern, this panel creates a unique architectural or industrial image. The 7.2 Insul-Rib panel can be installed both vertically and horizontally, allowing architects flexibility with design.

FEATURES AND BENEFITS:

  • Sweeping profile with unique shadow effects
  • Utilizes concealed clips and eliminates thermal short circuits
  • Easy and fast installation, with reduced construction labor cost
  • Interior and exterior applications
  • Can be used in conjunction with other CF joint profiles

PRODUCT SPECIFICATIONS:

  • Width: Nominal 36″
  • Thickness: 3″, 4″, 5″, 6″
  • Exterior Face: Stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga.
  • Interior Face: Mesa profile, stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga.
  • Joint: Offset double tongue-and-groove with extended metal shelf for positive face fastening
