BattenLok® HS
BattenLok® HS is a mechanically field-seamed, high-strength structural standing seam roof system. The BattenLok HS panels have a 2″ tall vertical seam and are available in both 12-inch and 16-inch widths. BattenLok HS can be installed directly over purlins or bar joists and is capable of transitioning from roof to fascia. BattenLok HS does not require a solid substructure for support.

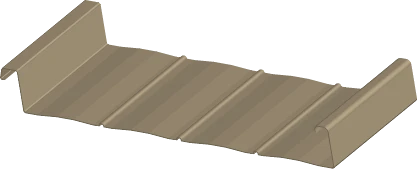

BattenLok HS Roof Panel
Panel Profile
Let's talk about your project needs!
Contact UsSPECIFICATION
| Applications: | Panel Systems, Roof Systems, Standing Seam Roof Systems |
|---|---|
| Coverage Width: | 12", 16" |
| Minimum Slope: | ½:12 |
| Panel Attachment: | Concealed Fastening System, Low, High (fixed or floating), Utility (no insulation clearance) |
| Gauge: | 24 (standard); 22 (optional) |
| Finishes: | Smooth (standard); Embossed (optional 24ga only); with Striations or Striations and Pencil Ribs |
| Coatings: | Galvalume Plus® , Signature® 200, Signature® 300, Signature® 300 Metallic |
FEATURES & BENEFITS
| Low and high clips are available to allow for various thicknesses of insulation to be installed between panels and purlins. |
| Heavier gauges, striations, embossing and installation over a solid deck minimize oil canning. |
| Numerous UL 580 construction ratings are available, as well as UL 790, Class A for external fire, numerous roof assemblies for UL 263 for internal fire and the UL 2218 |
| Class 4 impact rating. |
| BattenLok® HS carries a Florida approval rating. |
